Dynavox Tc-20

High quality MM Phono Preamplifier for phono machines The Dynavox TC-20 Phono Preamplifier is designed for use with phono machines and amplifiers without a phono input, or as a replacement for lower quality preamplifiers. The compact phono preamplifier in a metal housing offers high sound quality with external power supply. Fitment: ...

Bővebben ID: 281328 EAN: 4250019133633

Állapot

Új

Elérhetőség

Készleten Utolsó darab

Ár

14 545 Ft

Elérhetőség

Készleten Utolsó darab

High quality MM Phono Preamplifier for phono machines

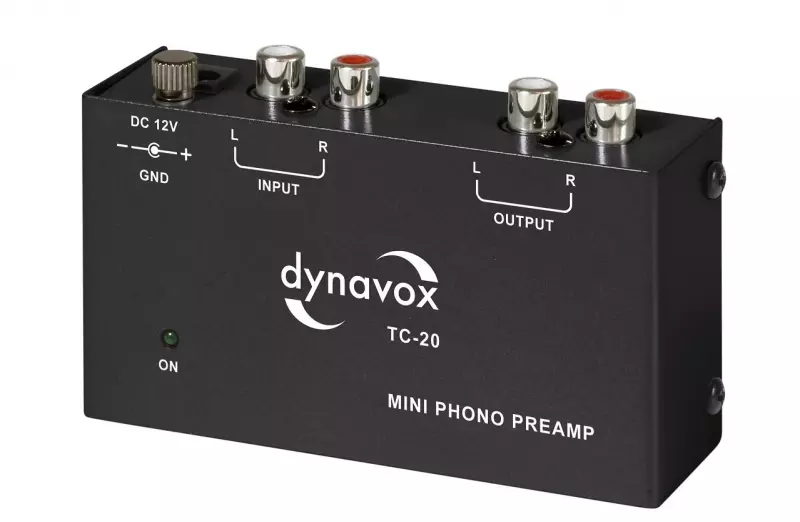

The Dynavox TC-20 Phono Preamplifier is designed for use with phono machines and amplifiers without a phono input, or as a replacement for lower quality preamplifiers. The compact phono preamplifier in a metal housing offers high sound quality with external power supply.

Fitment:

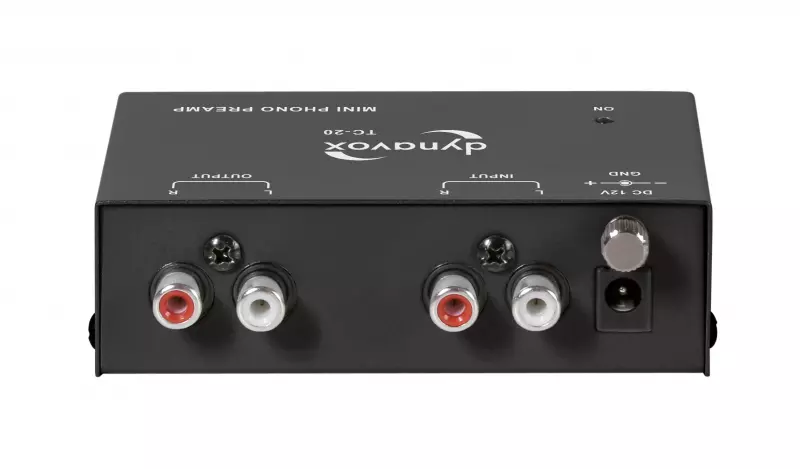

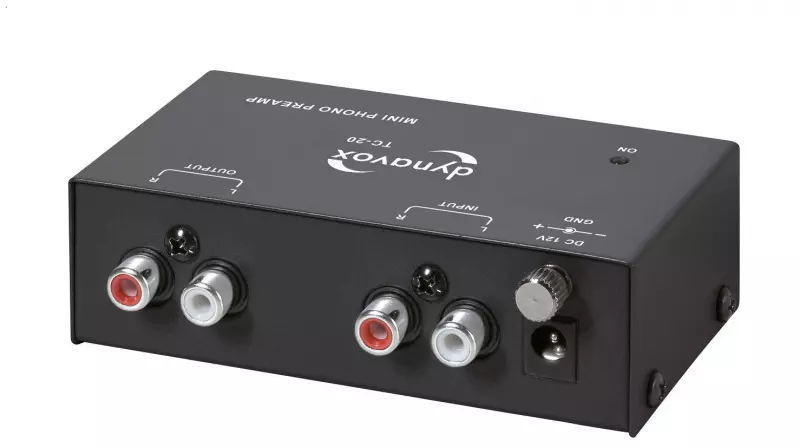

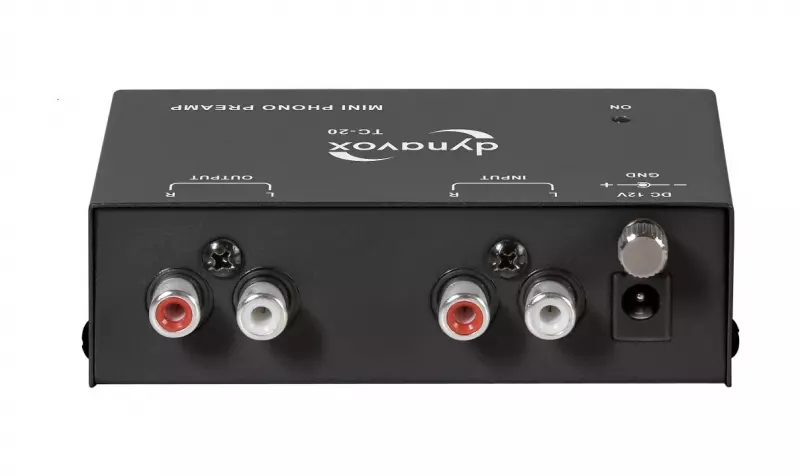

RCA signal inputs and outputs

Ground screw

Operating LED

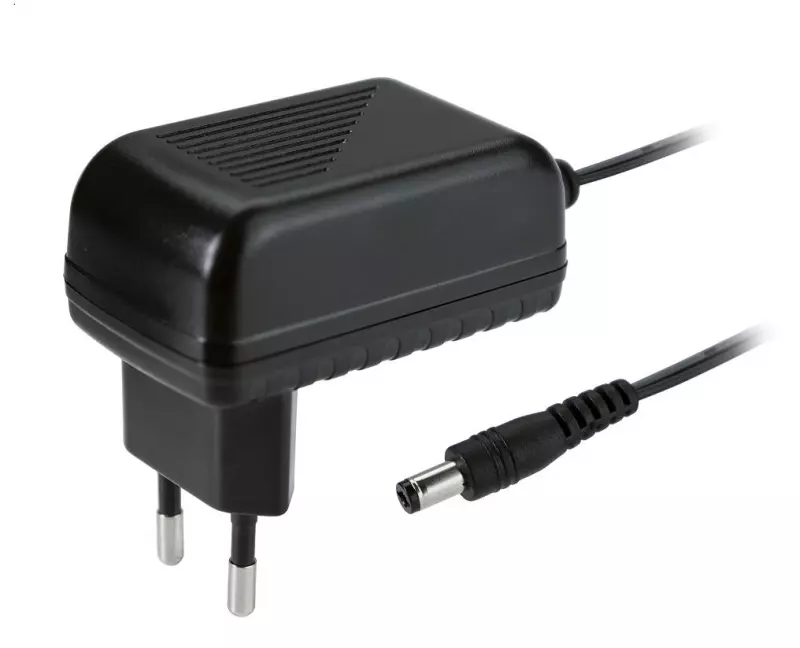

Power adapter

Specifications:

Frequency range: 20 Hz - 20 kHz (±2 dB)
Output voltage: 2 V max. (P-P) bei 10 kOhm
THD: 0.08% (1 kHz / 3mV)
Input sensitivity: 3 mV
Input impedance: 50 kOhm
Load impedance: 10 kOhm
Power supply: 230V(AC)/50 Hz - 12V(DC)/150mA
Dimensions (W x H x D) approx. 105 x 32 x 65 mm
Weight: 0.23 kg
