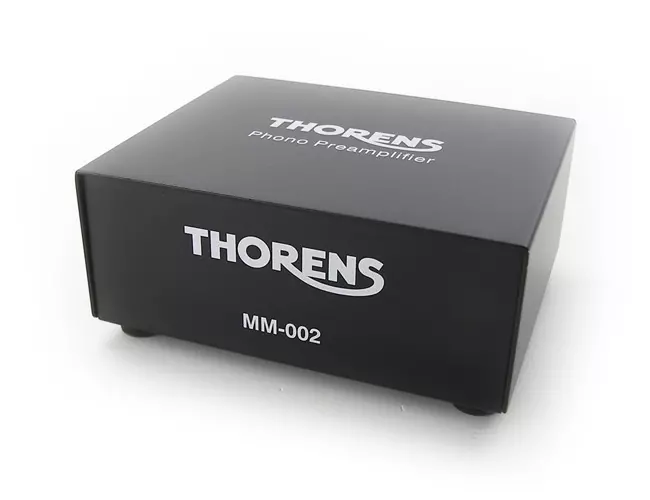

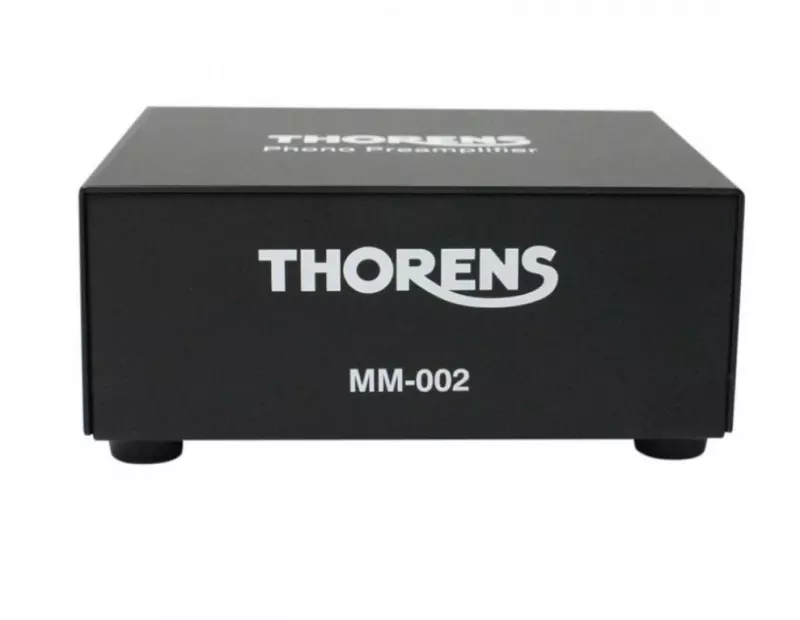

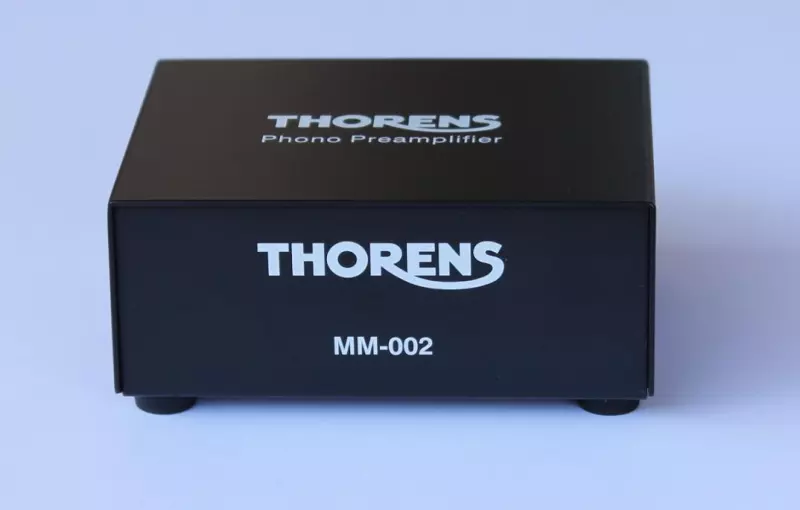

Thorens Mm-002

Sound quality phono preamplifier in a compact design suitable for MM cartridges. Input sensitivity: 3.14mVrms / -10dBV / 316mVrms Input impedance: 47kOhms + 220pF fixed Output voltage: 200mV/1kHz Output impedance: 47 Ohms Frequency Range: 10-50kHz / 3.0dB Signal to noise ratio: over 86dB Distortion: 0.015% Dimensions: 100...

Bővebben ID: 282645 EAN: 4260270220850

Legjobb ár garancia

Ha ezt a terméket máshol olcsóbban találod, mi megtérítjük a különbözetet!
bővebben

Állapot

Új

Elérhetőség

1 hét

Ár

63 400 Ft Ingyenes szállítás

Elérhetőség

1 hét

Sound quality phono preamplifier in a compact design suitable for MM cartridges.

Input sensitivity: 3.14mVrms / -10dBV / 316mVrms

Input impedance: 47kOhms + 220pF fixed

Output voltage: 200mV/1kHz

Output impedance: 47 Ohms

Frequency Range: 10-50kHz / 3.0dB

Signal to noise ratio: over 86dB

Distortion: 0.015%

Dimensions: 100x45x93mm

Weight: 292g

Colour: black

Power supply included

Features:

- Compact size Thorens MM-002 phono preamplifier

- Traditional Thorens top quality design

- All-metal housing provides quality shielding

- Ideal quality/price ratio for MM-type cartridges

- Colour: black

Specifications:


Operation	MM
Gain at 1 kHz	40 dB
Input impedance	47 kOhm + 220 pF fixed
Frequency range (-3 dB)	10 Hz - 50 kHz
RIAA curve accuracy	± 0.3 dB
THD + N	<0,015%
Signal to noise ratio	> 86 dB
Crosstalk	40 dB
Input sensitivity	3.14 mVrms at -10 dBV output (316 mVrms)
Maximum output voltage	498 mVrms at 5 mVrms input (1 kHz)
Output impedance	47 Ohm

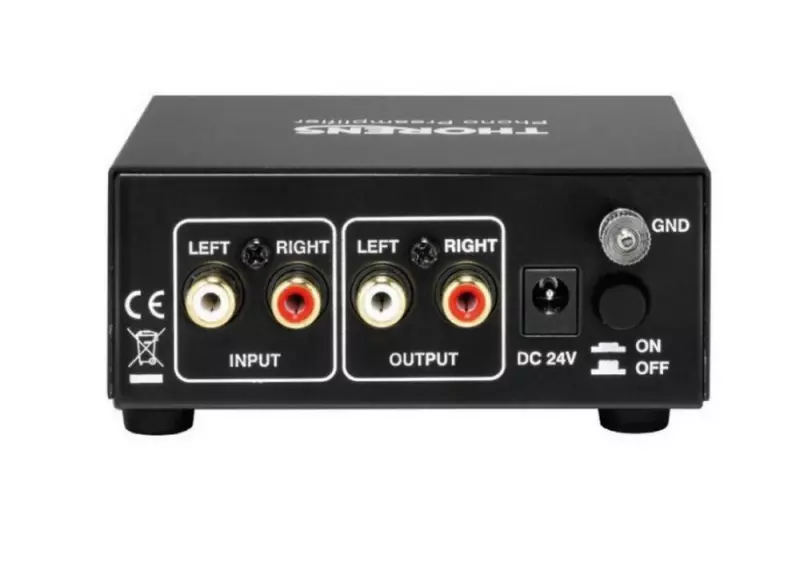

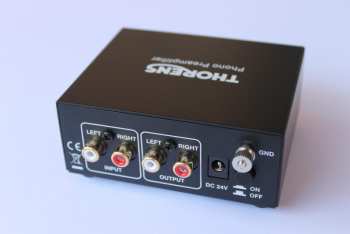

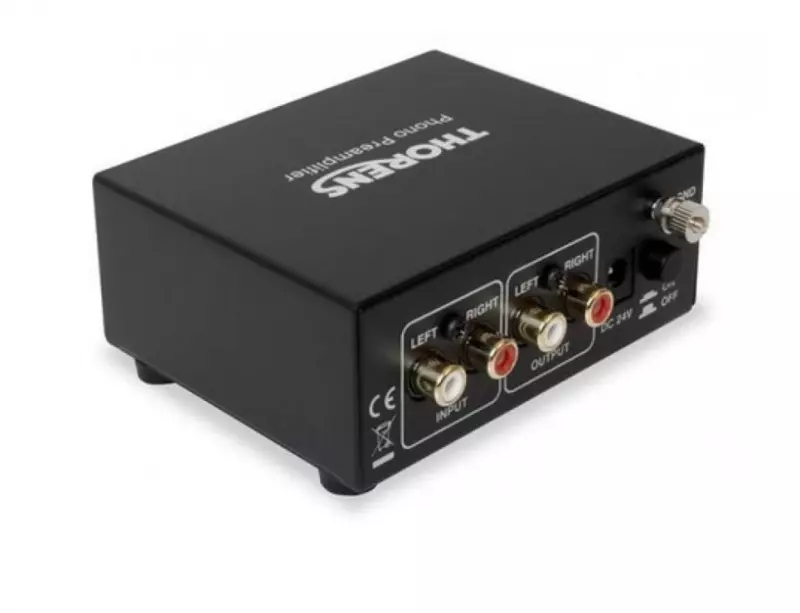

Input connectors	1 pair of RCA (cinch) connectors (left/right channel)
Output connectors	1 pair of RCA (cinch) connectors (left/right channel)
Source	External 24 V DC
Consumption	3.3 W, 15 mA
Dimensions (h x w x d)	45 mm × 100 mm × 93 mm
Weight	292 g (without external power supply)
