Tonar Vinyle MC/MM Pre-Amplifier

Phono MM - MC preamplifier for phono machines The Tonar Vinyline phono MC/MM preamplifier is an affordable solution for the highest quality MM and MC transmissions to your amplifier's AUX input. The switching button is located on the rear panel. The power supply is separate. Technical specifications: Input Impedance: MM: 47k Ohm / 100pF...

Bővebben ID: 158282

Állapot

Új

Elérhetőség

Visszamaradt rendelés

Ár

74 030 Ft Ingyenes szállítás

Elérhetőség

Visszamaradt rendelés

Phono MM - MC preamplifier for phono machines

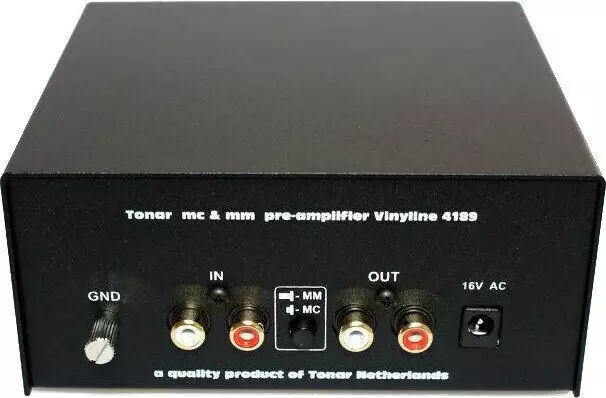

The Tonar Vinyline phono MC/MM preamplifier is an affordable solution for the highest quality MM and MC transmissions to your amplifier's AUX input. The switching button is located on the rear panel. The power supply is separate.

Technical specifications:

Input Impedance: MM: 47k Ohm / 100pF, MC: 100 Ohm / 100pF
Output Voltage: 200mV / 1kHz
with MM input 5.00mV / 1kHz
with MC input 0.45mV / 1kHz
Gain: MM 32dB, MC 53dB
Signal/Noise: MM: -88dB MC: -79dB
Distortion: THD: 0.005%
RIAA-precision equalization curve: 20 Hz - 20 kHz / max. 0.5dB
Power: 16 V / 200 mA - AC adapter included
