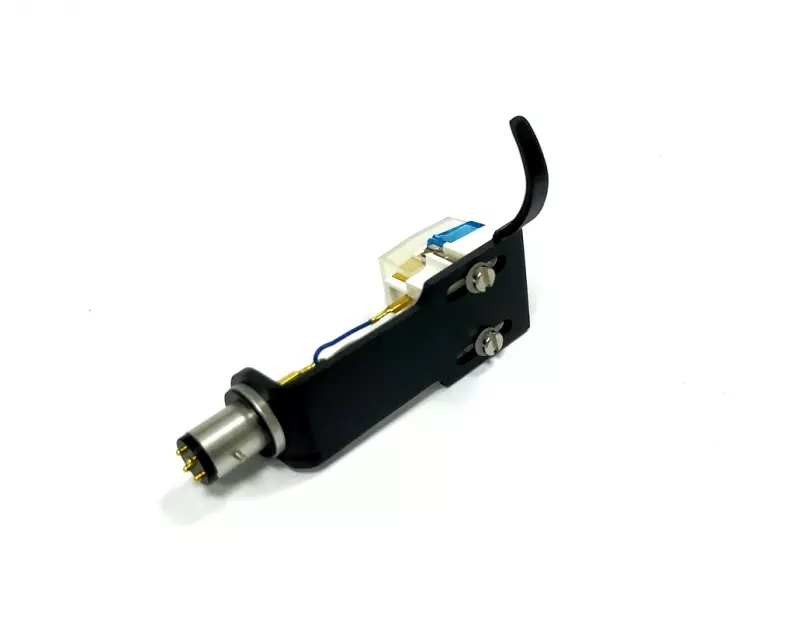

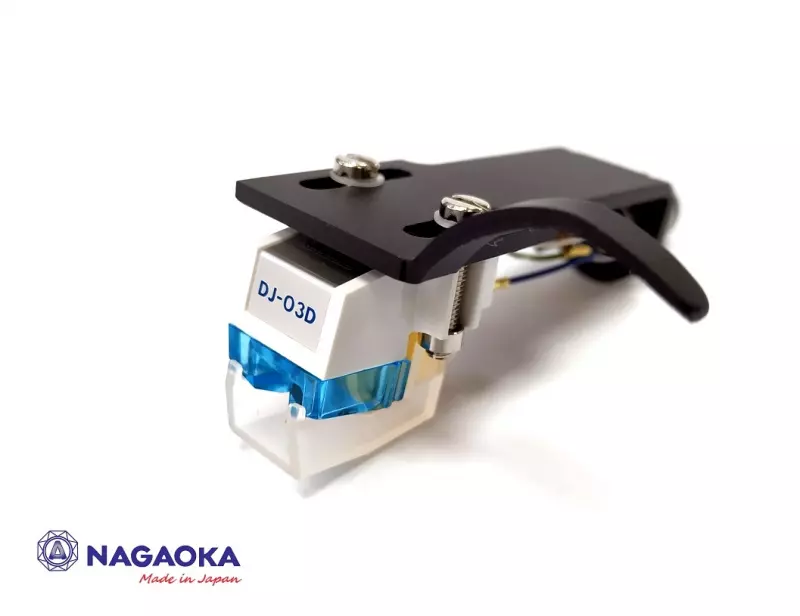

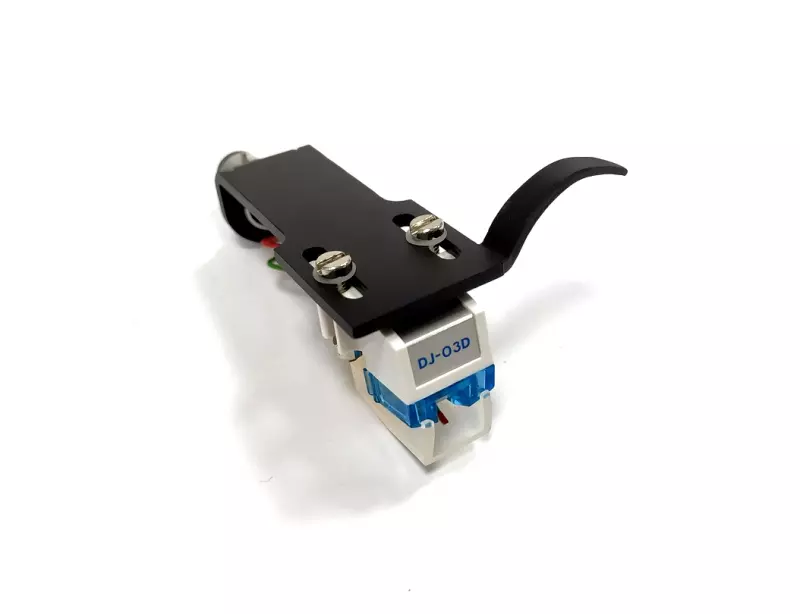

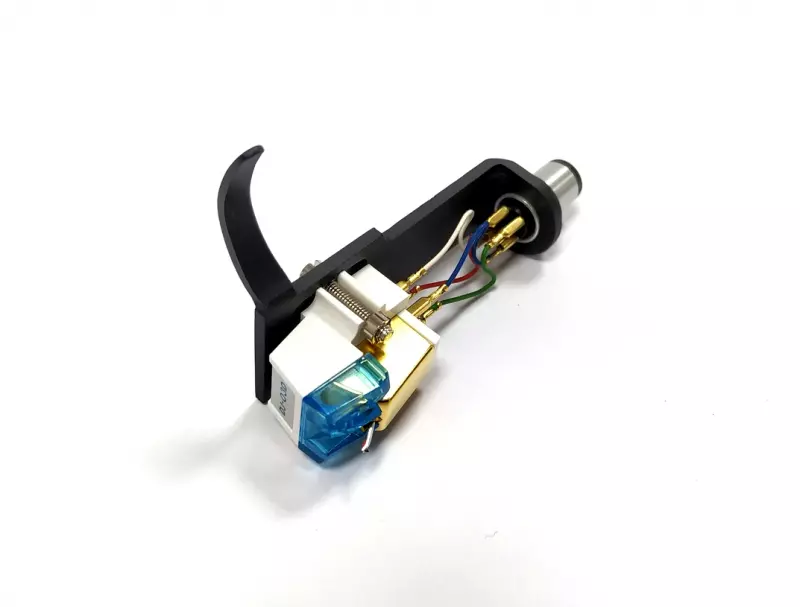

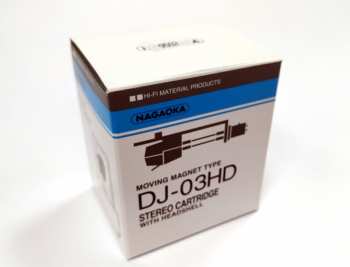

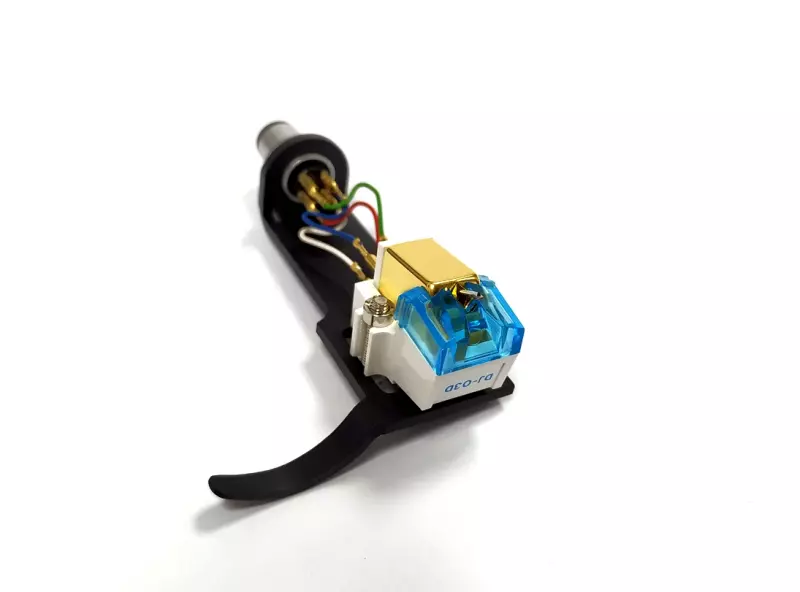

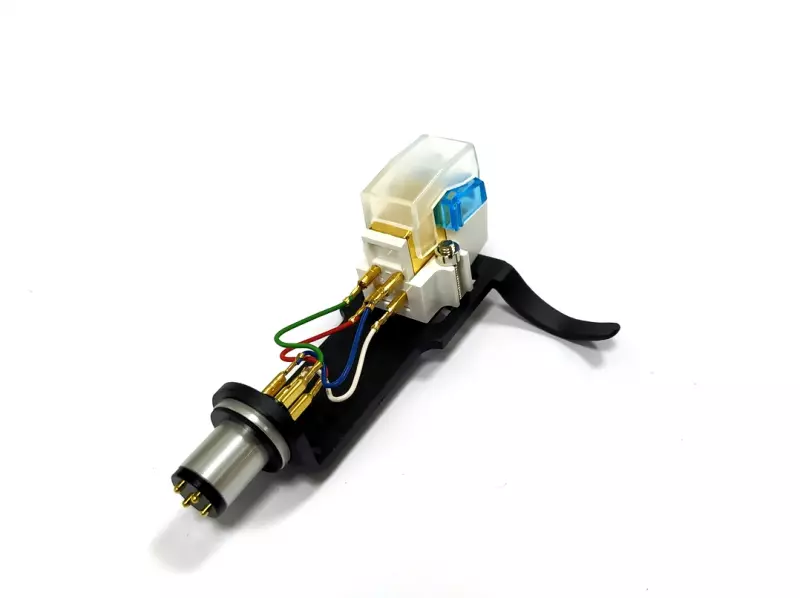

Nagaoka Dj-03 Hd

The Nagaoka brand needs no introduction ..... is synonymous with a beautiful and warm sound with crystal clear high notes. Nagaoka manufactures exclusively MM pickups and has technologically perfected them with 100% control over the quality of the individual parts.Their series of transducers combine the simplicity of MM transducers with the m...

Bővebben ID: 343134 EAN: 4967736073745

Legjobb ár garancia

Ha ezt a terméket máshol olcsóbban találod, mi megtérítjük a különbözetet!
bővebben

Állapot

Új

Elérhetőség

1 hét

Ár

88 980 Ft ~~129 640 Ft~~ Ingyenes szállítás

Elérhetőség

1 hét

The Nagaoka brand needs no introduction ..... is synonymous with a beautiful and warm sound with crystal clear high notes.

Nagaoka manufactures exclusively MM pickups and has technologically perfected them with 100% control over the quality of the individual parts.Their series of transducers combine the simplicity of MM transducers with the musicality and tonal accuracy of MC transducers. To protect your investment, all transducers have a tip change option !

All transducers Nagaoka are equipped with Nagaoka MI technology® MI (Moving Iron). This gives them the high level of detail associated with more expensive Moving Coil (MC) systems, while maintaining the convenience of an interchangeable stylus and the high performance associated with Moving Magnet (MM) types. The transmission incorporates a powerful Samarium - Cobalt magnet and high output coil levels so that instead of much heavierthe heavier permanent magnet used in conventional designs, a very lightweight steel and nickel end extension can be used. This reduces the moving mass of the cartridge, allowing the shaker to follow the recording groove more faithfully. The MI system is fully compatible with the basic MM phono input that comes standard with many integrated amplifiers.The result and advantage of this production-intensive system is the high clarity and superior pickup capability with the musicality and tonality accuracy of MC cartridges.

The use of a polished elliptical diamond offers high clarity and excellent sensing capability.

The new line of Nagaoka MM phono cartridges from Japan is here! Nagaoka is synonymous with "beautiful and warm sound with crystal clear treble", which aptly describes the sonic expression of these products. The transducers have an excellent frequency response and guarantee the highest transparency and excellent intelligibility of sound recordings. Since Nagaoka has perfected the MM system, it rivals and in many cases beats other much more expensive MM and MC transducers!

Nagaoka MI technology® DJ Cartridge

Technical Specifications:

Type: Moving Magnet (MM)

Principle: Nagaoka MI technology® MI (Moving Iron)

Vibration: aluminium alloy

Installation: 1/2″ mounting

Tip: Superfine polished conical diamond stylus

Magnet: Powerful Samarium Cobalt Magnet

Output Voltage: 6mV (5cm/SEC)

Frequency range: 20 Hz - 20 kHz

Channel Equalization: 1 kHz: > 2.0 dB

Channel crosstalk: 1 kHz: > 22 dB

Impedance: 47 kΩ

Capacitance: 100pF

Weight: 5.1 g

Recommended Pressure: 3~5g

Replacement tip: Nagaoka G JN-03D

- And anyway, for years now, Nagaoka's OEM transducers have also been sold under various brand names of other well-known vendors
- Everyone will be pleased - 100% MADE IN JAPAN

Jellemzők

Ajánlott nyomás

3 – 5 g

Frekvenciatartomány

20 - 20 000 Hz

Tömeg

5,1 g

Tű

Kúpos
